NL128102AC28-01E RGB 1280*1024 LCD Display screen
NL128102AC28-01E Product details :
| NEC LCD Screen NL128102AC28-01E |
| Manufacturer | NEC |
| Model Name | NL128102AC28-01E |
| Screen Size | 18.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 90PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 359.04(W)×287.232(H) mm |
| Bezel Opening | 364.0(W)×292.2(H) mm |
| Outline (mm) | 424(H)×337(V) ×40(D) mm |
| Treatment | Hard coating (3H), Antireflection |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 40/35 (Typ.)(Tr/Td) |
| View Direction | - |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | Full color 60% NTSC |
| Backlight | 8 pcs CCFL , With Inverter |
| Mass | 2.00/2.10Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | Analog RGB , 41 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| NL128102AC28-01E RGB 1280*1024 LCD Display screen |
NL128102AC28-01E Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL128102AC28-01E Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL128102AC28-01E Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL128102AC28-01E About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL128102AC28-01E Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL128102AC28-01E FAQ:
Q: How to make payment of NL128102AC28-01E ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of NL128102AC28-01E ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of NL128102AC28-01E to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
NL128102AC28-01E Shippment & Packing:
|
|

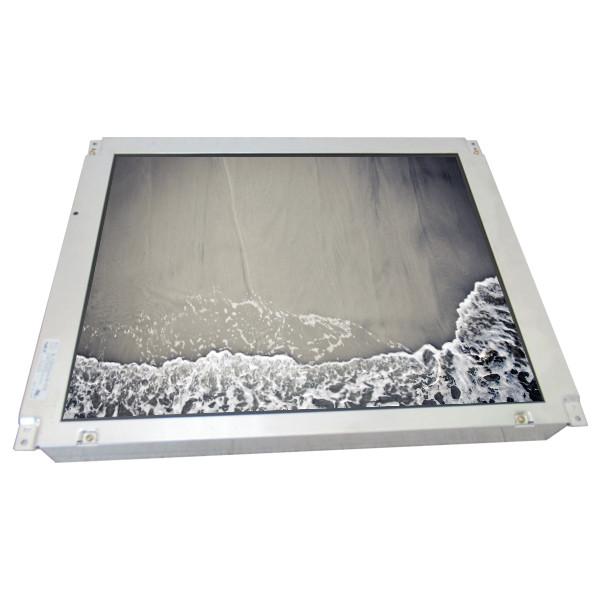

NL128102AC28-01E RGB 1280*1024 LCD Display screen Images
|
