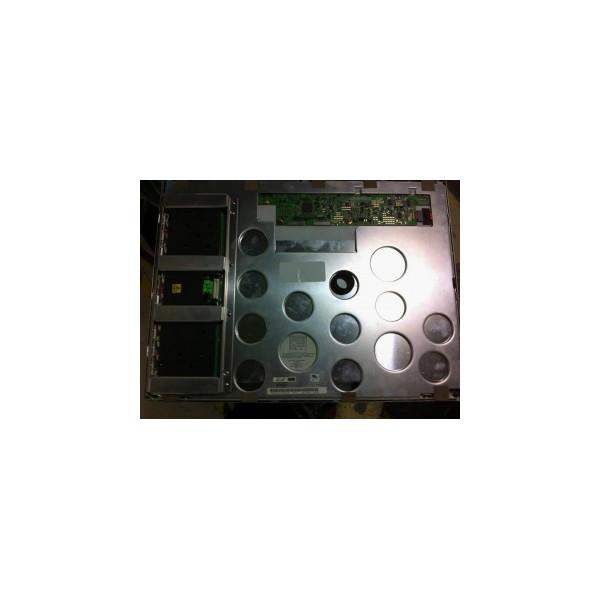

IAUX61 19.6 inch 1600*1200 40 pins LCD screen LCD Module

Product Categories
Shenzhen Yongsheng Innovation Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IAUX61 19.6 inch 1600*1200 40 pins LCD screen LCD Module

  • 1
  • 2

Brand Name : IDTech

Model Number : IAUX61

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 Unit/Units per Month

Delivery Time : 7 Days

Packaging Details : Original packaging/conventional packaging box

Model Name : IAUX61

Diagonal Size : 19.6"

Panel Type : a-Si TFT-LCD, LCM

Resolution : 1600(LCR)×1200, UXGA 102PPI

Pixel Format : LCR Vertical Stripe

Active Area : 398.4(W)×298.8(H) mm

Used for : Medical Imaging

Touchscreen : Without

Contact Now

IAUX61 19.6 inch 1600*1200 40 pins LCD screen LCD Module



IAUX61 LCD Panel Product details :



Brand IDTech
Model P/N IAUX61
Diagonal Size 19.6"
Panel Type a-Si TFT-LCD, LCM
Resolution 1600(LCR)×1200, UXGA 102PPI
Pixel Format LCR Vertical Stripe
Active Area 398.4(W)×298.8(H) mm
Bezel Opening -
Outline Size 427(W)×322.4(H)×42(D) mm
Brightness 1140 cd/m² (Typ.)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Best View on Symmetry
Display Colors Grayscale
Frequency -
Weight 2.30/2.50kgs (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Contrast Ratio 600:1 (Typ.) (TM)
Display Mode DD-IPS, Normally Black, Transmissive
Response Time 20/20 (Typ.)(Tr/Td)
Lamp Type 12 pcs CCFL , 50K hours , With Inverter
Touch Screen Without
Application Medical Imaging
Signal Interface LVDS (2 ch, 8-bit), 40 pinsConnector
Input Voltage 12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 65 °C
IAUX61 19.6 inch 1600*1200 40 pins LCD screen LCD Module

IAUX61 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.


IAUX61 LCD Panel Shipping and Package :

IAUX61 19.6 inch 1600*1200 40 pins LCD screen LCD Module



IAUX61 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

IAUX61 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.


IAUX61 LCD Panel FAQ :



Q:If I place order now,when will you ship the goods of IAUX61 ?

A: The order will be shipped within 2-3 working days after received your payment.



Q:Do you accept sample orders of IAUX61 ?

A:Of course!sample order is welcome !



Q: How long is the warranty ?

A: We offer 90days warranty .



Q: How long will I receive my goods IAUX61 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
